Product Description:

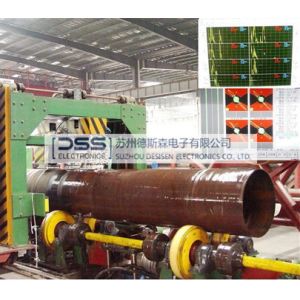

CUT-ZY series of Submerged arc welding pipe automatic detection
system,adopting computer China (or English )menu human-computer
dialogue,big screen displays,multiple mode alarm techniques and
specially designed digital electronic balance technique and
intelligent dynamic filtering technique,make instrument more easier
to operate.
Due to CUT-ZY series of submerged arc welding pipe automatic
detection system adopts digital type design,so when change
production specification ,we don’t have to restart to adjust
instrument, ultimately realize easy -operating mode.
Features:
1. According to standard and requirements to install probes,testing
longitudinal flaw and transverse flaw on weld and heat affected
zone delaminate defects
2. Workpiece spiral forward or workpiece rotation on site,detecting
car straight forward
3. It can equipped with weld automatic laser tracking system.
Technical Parameters:
| Name | Portable Eddy Current Flaw Detector CUT-ZYseries |
|---|
| The number of channels | 12 |
| Gain amount | 80dB,stepping is 0.1dB |
| working method | single probe launches,receive or double probes launch ,receive
respectively |
| surplus sensitivity | ≥50dB |
| resolution | ≥26dB |
| Dynamic range | ≥30dB |
| Scanned range | 0～5000mm |
| Frequency range | 0.5～15MHz |
| Repetition frequency | 500Hz～10KHz,changeable |
| Vertical linearity | ≤5% |
| Horizontal linearity | ≤1% |
| Strobe setting | every channel sets three strobes,alarm strobe,tracking strobe,and
self-locking strobe |
| Lasting time alarm | delayed time 0.5～10S ,stepping is 0.1 s |
| Defect detection conditions and waveform preservation | the number is unlimited ,can be used for waveform playback,wave
communication,waveform printing |
Support and Services:
Technical Support and Service for CUT-ZYseries
We provide technical support and service to ensure our customers
are satisfied with their Portable Eddy Current Flaw Detector. We
offer both on-site and online support for all of our products.
On-site Support
Our on-site support team is available to help with any
installation, troubleshooting, or maintenance related issues you
may have with your Portable Eddy Current Flaw Detector. Our
technicians can come to your location and help with any questions
or problems you may have.
Online Support
Our online support team is available 24/7 to help with any
questions or issues you may have with your Portable Eddy Current
Flaw Detector. We have a live chat feature on our website, as well
as an online ticket system for more in-depth issues. Our team is
always available to help.
FAQ:
Q1: What is the brand name of this product?
A1: The brand name of this product is Desisen.
Q2: What is the model number of this product?
A2: The model number of this product is CUT-ZYseries.
Q3: Where is this product made?
A3: This product is made in China.
Q4: Does this product have any certification?
A4: Yes, this product has ISO9001 certification.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.
