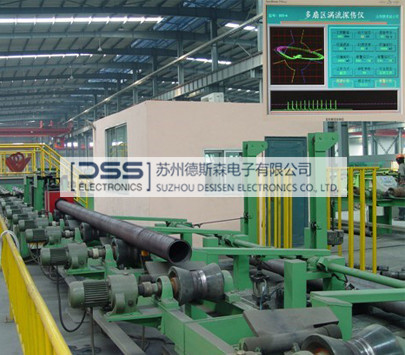

    Automatic Tube Bars Eddy Current Ultrasonic Testing System

    Ask Lasest Price
    Brand Name : Suzhou Desisen (DSS) Electronics
    Model Number : CUT-2012A Series
    Certification : ISO 9001, CE
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100 sets
    Delivery Time : 2-33 weeks
    • Product Details
    • Company Profile

    Automatic Tube Bars Eddy Current Ultrasonic Testing System

    Product Description:

    The CUT-2012A type 12 channels automatic tube bars eddy current ultrasonic testing system depends on PLC programmable controller to collect,calculate and control the signal of speed coder,photoelectric, eddy current ultrasonic flaw detection,realizing every kind of automatic control of tube bar offline,variable speed ultrasonic flaw process.

    This system adopts DC speed control technique and power module control technique to realize transfer roller table stepless variable speed control,it can avoid high frequency random disturbance signal produced by normal alternating current converter ,make on site results more stable reliable.

    This system is equipped with various parameter settings,adjustment ,preserve and usage needed by ultrasonic automatic flaw detection , possessing traits such as on site parameter adjustment simple ,high efficiency flaw detection.

    This system satisfies requirements of automatically marking inside and outside wall defect in variable speed detection process.


    Features:

    It is suitable for testing requirements of various kinds of mental material,wire rod, due to adoptdigital design ,so it can builda lot of standard testing program or professional system,so s to be convenient for users to use when change product specification.,it also equipped with input output control interface, so as to be easy to test site has connected to various equipment, and work together ,constitute a supermatic system.


    Technical Parameters:

    NamePortable Eddy Current Flaw Detector CUT-2012A type
    The number of channels12
    Gain amount80dB,stepping is 0.1dB
    working methodsingle probe launches,receive or double probes launch ,receive respectively
    surplus sensitivity≥50dB
    resolution≥26dB
    Dynamic range≥30dB
    Scanned range0~5000mm
    Frequency range0.5~15MHz
    Repetition frequency500Hz~10KHz,changeable
    Vertical linearity≤5%
    Horizontal linearity≤1%
    Strobe settingevery channel sets three strobes,alarm strobe,tracking strobe,and lock strobe
    Lasting time alarmdelayed time 0.5~10S ,stepping is 0.1 s
    Defect detection conditions and waveform preservationThe number is unlimited ,can be used for waveform playback, waveform communication,waveform printing

    Support and Services:

    Technical Support and Service for ERW Automatic Flaw Detector

    We provide technical support and service to ensure our customers are satisfied with their Portable Eddy Current Flaw Detector. We offer both on-site and online support for all of our products.

    On-site Support

    Our on-site support team is available to help with any installation, troubleshooting, or maintenance related issues you may have with your Portable Eddy Current Flaw Detector. Our technicians can come to your location and help with any questions or problems you may have.

    Online Support

    Our online support team is available 24/7 to help with any questions or issues you may have with your Portable Eddy Current Flaw Detector. We have a live chat feature on our website, as well as an online ticket system for more in-depth issues. Our team is always available to help.

    FAQ:

    Q1: What is the brand name of this product?

    A1: The brand name of this product is Desisen.

    Q2: What is the model number of this product?

    A2: The model number of this product is CUT-2012A Series Automatic.

    Q3: Where is this product made?

    A3: This product is made in China.

    Q4: Does this product have any certification?

    A4: Yes, this product has ISO9001 certification.

    Q5: What's the minimum order quantity?

    A5: The minimum order quantity is 1.
